What you'll get in
What you'll get in
XLJET XLCUT
Precision cutting
Pneumatic control
Pedal gear
Sharp cut
What you’ll get in
What you’ll get in
XLJET XLCUT
Features
XLJET XLCUT
Pneumatic technology
Pneumatic technology
Pneumatic technology
Sharp edge quality finish
Sharp edge quality finish
Sharp edge quality finish
Easy tool changing
Multiple production operations and
quality finishing
Easy tool changing
Mild steel, Aluminium body
Mild steel, Aluminium body
Single operator with flexible
easy handling
Easy handling
Easy handling
Easy handling
Digital card & power saver
Digital card & power saver
Digital card & power saver
Features
Features
XLJET XLCUT
Features
XLJET XLCUT
01
01
Single-Side Operation for Enhanced Efficiency
Single-Side Operation for Enhanced Efficiency
Hydraulically operated roller ensures uniform pressure of roller on the lamination media giving excellent results
02
02

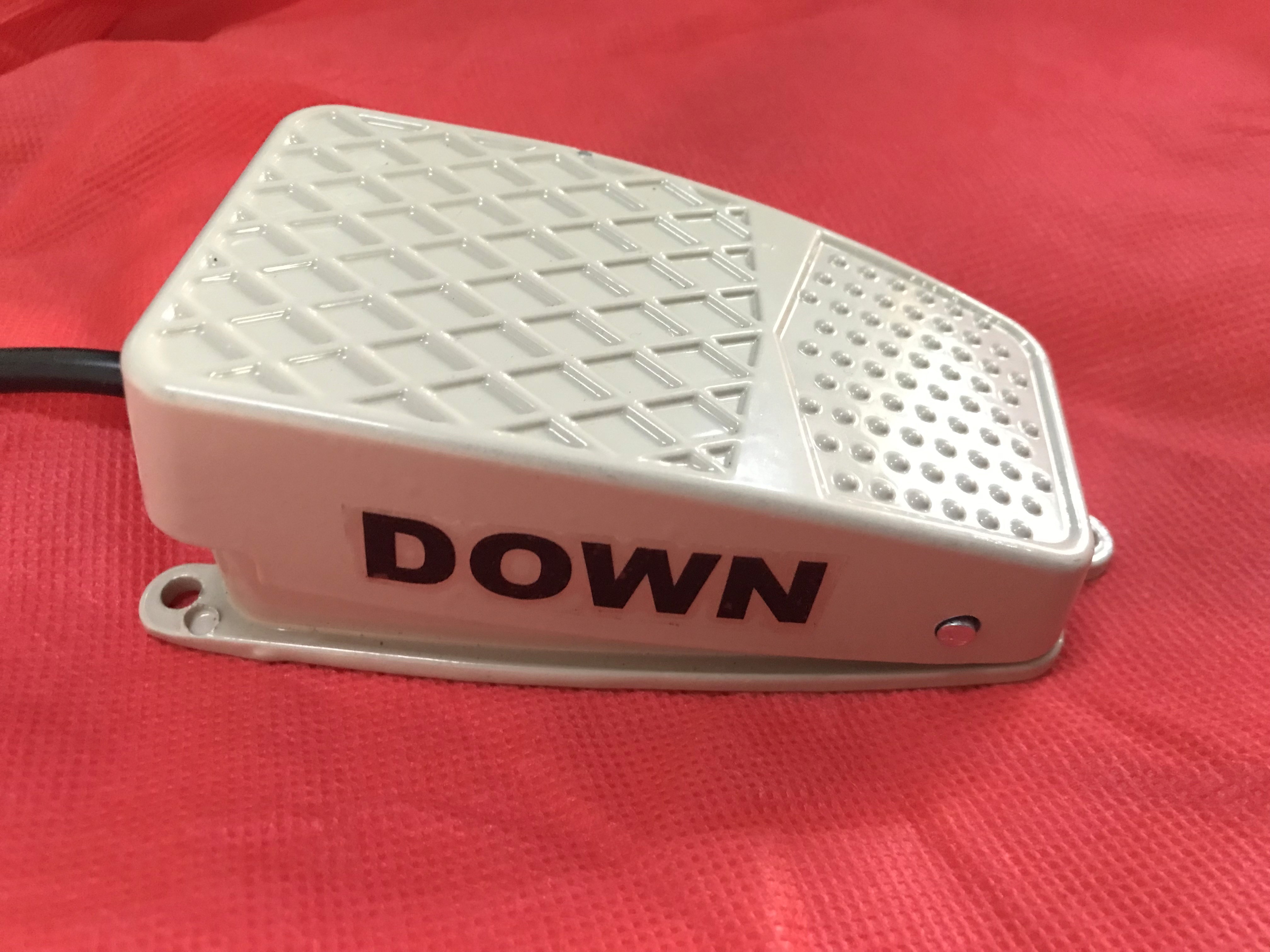

Push-button and foot switch controls offer simultaneous flexibility, allowing convenient and versatile machine operation
Push-button and foot switch controls offer simultaneous flexibility, allowing convenient and versatile machine operation
Push-button and foot switch controls offer simultaneous flexibility, allowing convenient and versatile machine operation
03
03
Compatible with Sunboard, Foam Board, Sunpack
(up to 10 mm), as well as PVC and PP sheets
(up to 2 mm thickness)
Compatible with Sunboard, Foam Board, Sunpack
(up to 10 mm), as well as PVC and PP sheets
(up to 2 mm thickness)
Sun board, form board,
sun pack (up to 10mm), PVC,
PP (up to 2mm)
04
04
Equipped with pneumatic control for enhanced performance
Equipped with pneumatic control for enhanced performance
Equipped with pneumatic control for enhanced performance
05
05

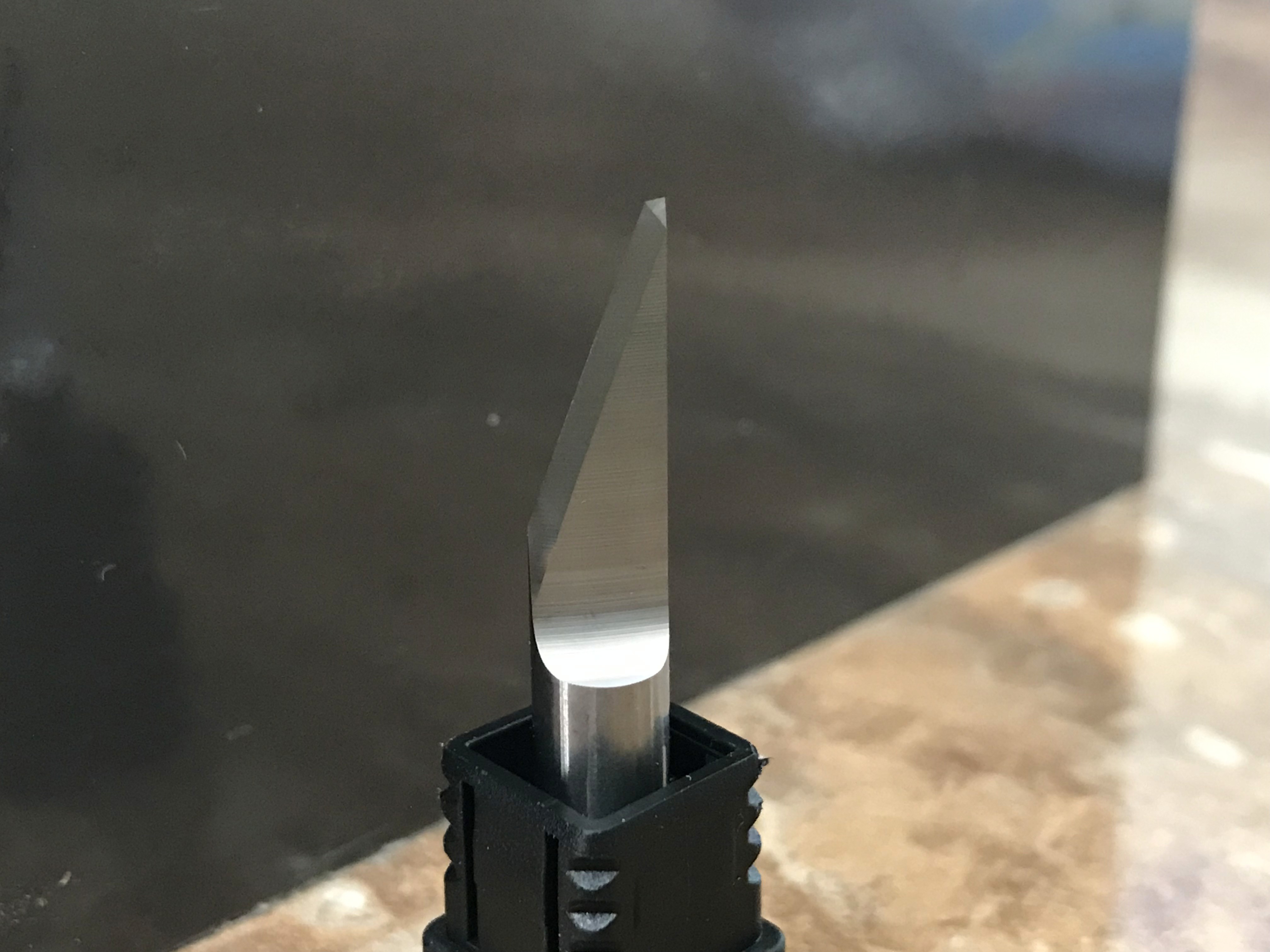

Equipped with a high-density carbide blade for enhanced durability and precision cutting
Emergency stop provided
as a safety device to stop
the machine instantly in case of emergency
Equipped with a high-density carbide blade for enhanced durability and precision cutting
06
06
Engineered for reliability and long-term durability
Variable roller gap enables mounting of film on sunboard, polycarbonate, flex and acrylic of any thickness up to 0 - 20mm
Engineered for reliability and long-term durability
07
07
The cutting tool automatically retracts when idle to ensure safety and prevent damage
Variable roller gap enables mounting of film on sunboard, polycarbonate, flex and acrylic of any thickness up to 0 - 20mm
Cutting tool is withdrawn inside
when idle
08
08

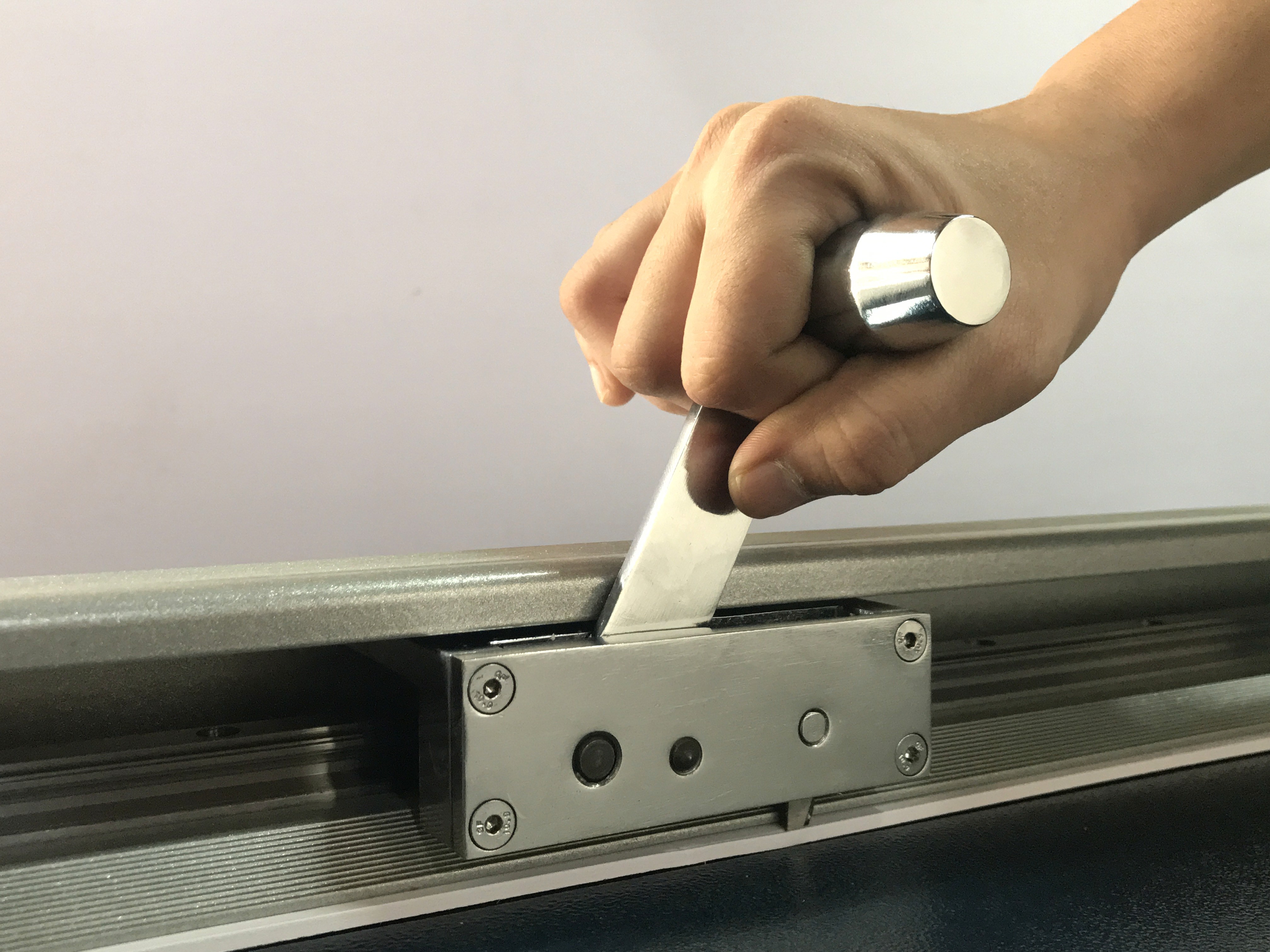

Cutting tool mounting is quick, easy, and hassle-free for enhanced user convenience
Long print platform to keep
the print free from dust
and eases handling
Cutting tool mounting is quick, easy, and hassle-free for enhanced user convenience
09
09
Integrated 90-degree scale ensures precise right-angle cutting for improved accuracy and consistency
Long print platform to keep
the print free from dust
and eases handling
Integrated 90-degree scale ensures precise right-angle cutting for improved accuracy and consistency
10
10
Specifically designed to deliver sharp, precise cutting of foam board
Long print platform to keep
the print free from dust
and eases handling
Specifically designed to deliver sharp, precise cutting of foam board
CONTACT INFORMATION
AA - 65/66, Kailash Industrial Complex,
Vikhroli - Hiranandani Link Road, Vikhroli West,
Mumbai - 400 079, India
MON - SAT | 9:00 AM to 7:00 PM
+91 22 25174148 / 49
info@bnrdigitals.com
USEFUL LINKS
Contact us
News & updates
Terms & conditions
Privacy policy
Return policy
Technical specifications

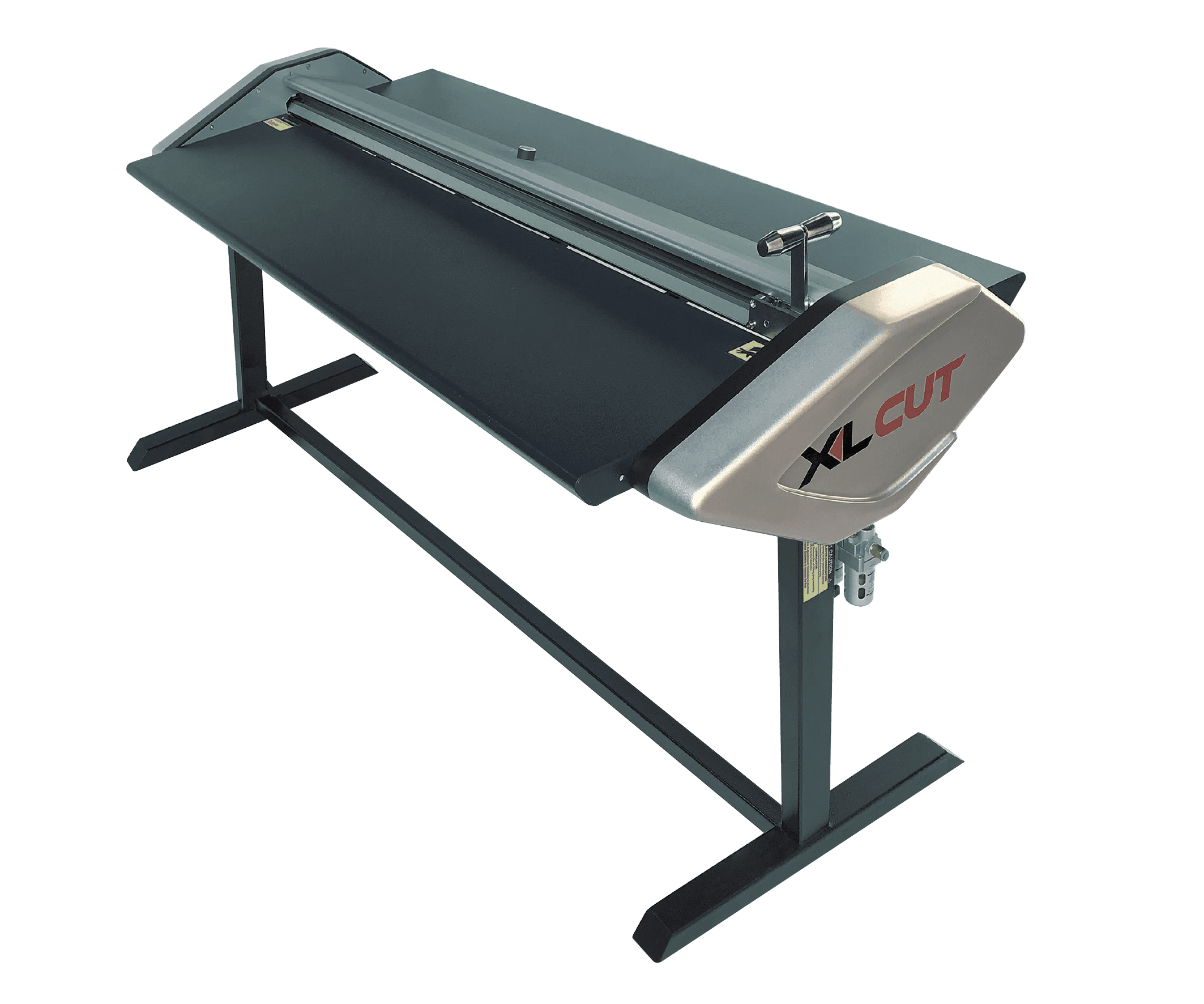

XLJET XLCUT 62" SUNBOARD CUTTING
Maximum working width
Maximum working length
Maximum working gap
Blade
Cutting direction
Total dimension (LxWxH)
Net weight
1520 mm
640 mm
10 mm
Carbide cutting tool
One side
1800x640x820 mm
60 kg
FEATURES
Operating system
Pedal switch
Control panel
LED switch up/down
Press up/down
Digital control card (PCB)
Electrical Characteristics
Power Consumption
Electric Supply
0.85 K watts (max)
230V/50Hz
CONTACT INFORMATION
AA - 65/66, Kailash Industrial Complex,
Vikhroli - Hiranandani Link Road, Vikhroli West,
Mumbai - 400 079, India
MON - SAT | 9:00 AM to 7:00 PM
+91 22 25174148 / 49
info@bnrdigitals.com
CONTACT INFORMATION
AA - 65/66, Kailash Industrial Complex, Vikhroli - Hiranandani Link Road, Vikhroli West,
Mumbai - 400 079, India
MON - SAT | 9:00 AM to 7:00 PM
+91 22 25174148 / 49
info@bnrdigitals.com
Technical specifications
XLJET XLCUT 62" SUNBOARD CUTTING
Maximum working width
Maximum working length
Maximum working gap
Blade
Cutting direction
Total dimension (LxWxH)
Net weight
1520 mm
640 mm
10 mm
Carbide cutting tool
One side
1800x640x820 mm
60 kg
FEATURES
Operating system
Pedal switch
Control panel
LED switch up/down
Press up/down
Digital control card (PCB)
Electrical Characteristics
Power Consumption
Electric Supply
0.85 K watts (max)
230V/50Hz
