Easy feed table
Pneumatic operation
Ergonomic control panel
Working Gap
What you'll get in
What you'll get in
XLJET SMART
What you’ll get in
What you’ll get in
XLJET SMART
Features
XLJET SMART
Advanced Digital and Analog System
Advanced Digital and Analog System
Advanced digital and
analog system
Pneumatic Technology
Pneumatic Technology
Pneumatic Technology
Multiple Production Options and Quality Finishing
Multiple Production Options and Quality Finishing
Multiple Production Options
and Quality Finishing

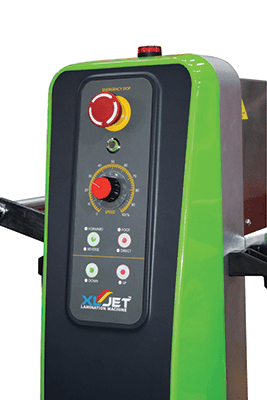

Dual side keypad controls for easy operation from both sides
Dual side keypad controls for easy operation from both sides
Dual side keypad controls for easy operation from both sides
Single Operator with Flexible Easy Handling
Multiple production operations and
quality finishing
Single Operator with
Flexible Easy Handling

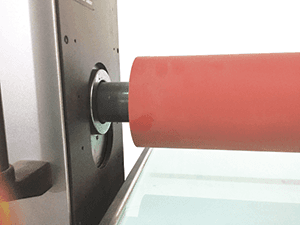

Silicone Roller
Silicone Roller
Single operator with
flexible easy handling
Glass Flatbed Desk
Glass Flatbed Desk
Glass Flatbed Desk
Features
Features
XLJET SMART
Features
XLJET SMART
01
Single Person operation with
quality fast production
02
Dual side keypad controls for
easy operation from both sides
03
Automatic lamination and Mounting films operations with feather touch button controls
04
Electronically driven roller to transit the toughened glass flatbed desk
05
Emergency stop provided
as a safety device to stop
the machine instantly in
case of emergency
06
Emergency stop provided
as a safety device to stop
the machine instantly in case
of emergency
07
Variable roller gap enables mounting of film on sunboard, polycarbonate, flex and acrylic of any thickness
up to 0 - 50mm
08
Long print platform to keep
the print free from dust
and eases handling
CONTACT INFORMATION
AA - 65/66, Kailash Industrial Complex,
Vikhroli - Hiranandani Link Road, Vikhroli West,
Mumbai - 400 079, India
MON - SAT | 9:00 AM to 7:00 PM
+91 22 25174148 / 49
info@bnrdigitals.com
USEFUL LINKS
Contact us
News & updates
Terms & conditions
Privacy policy
Return policy
01
Enables single-person operation while maintaining high-quality, fast production output
Enables single-person operation while maintaining high-quality, fast production output
02
Dual-side keypad controls enable convenient operation from either side of the machine
Dual-side keypad
controls enable convenient operation from either
side of the machine
03
Automatic lamination and mounting operations controlled via feather-touch buttons for ease and precision
Automatic lamination
and mounting operations controlled via feather-touch buttons for ease
and precision
04
Electronically driven rollers ensure smooth and precise movement of the toughened glass flatbed surface
Electronically driven
rollers ensure smooth and precise movement of the toughened glass flatbed surface
05
An emergency stop is provided as a critical safety measure to instantly halt the machine in the event of an emergency
Emergency stop provided
as a safety device to stop
the machine instantly in case of emergency
06
The variable roller gap allows for precise mounting of films on substrates such as Sunboard, Polycarbonate, Flex, and Acrylic with thicknesses up to 50 mm
Emergency stop provided
as a safety device to stop
the machine instantly in case of emergency
07
Flatbed desk design enables streamlined, efficient, and high-speed production
Variable roller gap enables mounting of film on sunboard, polycarbonate, flex and acrylic of any thickness up to 0 - 20mm
08
The extended print platform minimizes dust exposure and facilitates easier handling of prints
Long print platform to keep
the print free from dust
and eases handling
Technical specifications

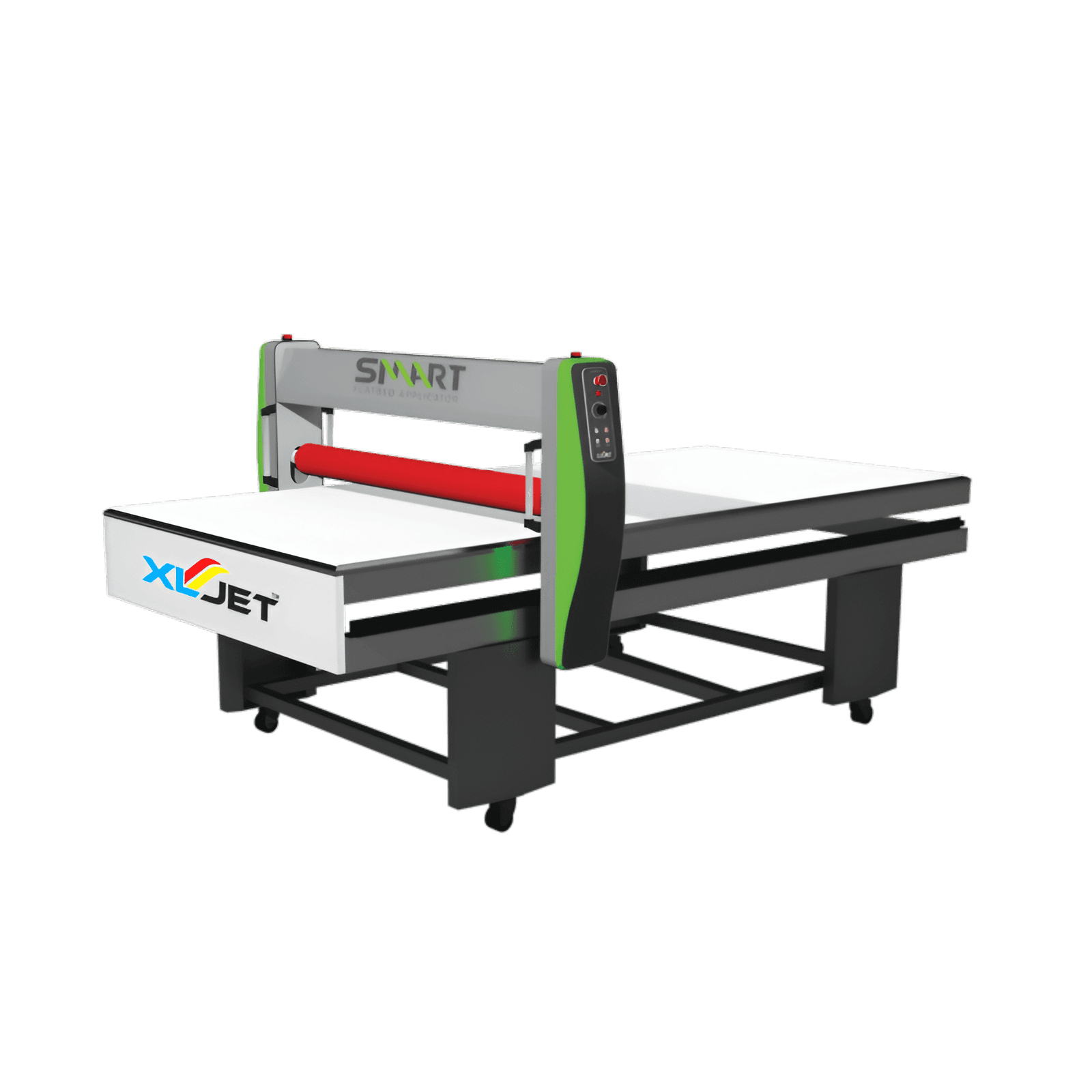

XLJET SMART FLATBED APPLICATOR
MODELS
Roller diameter
Maximum Working Width
Maximum Working Length
Maximum Working Height
Maximum Working Gap
Maximum speed
Lamination Direction
Dimensions (LxWxH)
4X8 FEET
120 mm
1370 mm
2440 mm
900 mm
50 mm
15 mtr/min
Forward & Reverse
3050x1400x1450 mm
5X10 FEET
120 mm
1575 mm
3050 mm
900 mm
50 mm
15 mtr/min
Forward & Reverse
3660x1675x1450 mm
FEATURES
Roll Pressure
Motor Driven
Speed Control
Movable Frame (Roller)
Pneumatic
Yes
Control Dial
Yes
Pneumatic
Yes
Control Dial
Yes
Electrical Characteristics
Electric Supply
230V/50Hz
230V/50Hz
CONTACT INFORMATION
AA - 65/66, Kailash Industrial Complex,
Vikhroli - Hiranandani Link Road, Vikhroli West,
Mumbai - 400 079, India
MON - SAT | 9:00 AM to 7:00 PM
+91 22 25174148 / 49
info@bnrdigitals.com
CONTACT INFORMATION
AA - 65/66, Kailash Industrial Complex, Vikhroli - Hiranandani Link Road, Vikhroli West,
Mumbai - 400 079, India
MON - SAT | 9:00 AM to 7:00 PM
+91 22 25174148 / 49
info@bnrdigitals.com
Technical specifications
XLJET SMART FLATBED APPLICATOR
MODELS
Roller diameter
Maximum Working Width
Maximum Working Length
Maximum Working Height
Maximum Working Gap
Maximum speed
Lamination Direction
Dimensions (LxWxH)
4X8 FEET
120 mm
1370 mm
2440 mm
900 mm
50 mm
15 mtr/min
Forward & Reverse
3050x1400x1450 mm
5X10 FEET
120 mm
1575 mm
3050 mm
900 mm
50 mm
15 mtr/min
Forward & Reverse
3660x1675x1450 mm
FEATURES
Roll Pressure
Motor Driven
Speed Control
Movable Frame (Roller)
Pneumatic
Yes
Control Dial
Yes
Pneumatic
Yes
Control Dial
Yes
Electrical Characteristics
Electric Supply
230V/50Hz
230V/50Hz
